>> D << Center Differential Drive Gear Installation

  1. Apply specified sealant to the entire threaded portion of the bolt.

    Specified sealant: 3M™STUD Locking No. 4710 or equivalent

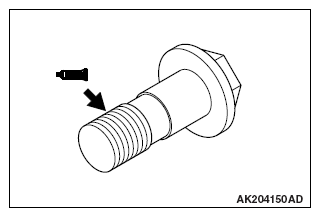

    Fig 1: Identifying Sealant Applying Area On Threaded Portion Of Bolt
    G09641344Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Tighten the bolts to the specified torque of 133 ± 4 N.m (98 ± 2 ft-lb) in the illustrated order.

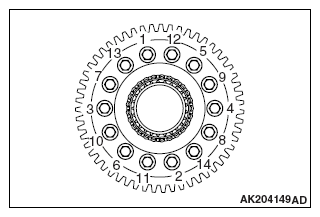

    Fig 2: Mounting Bolts Tightening Sequence
    G09641345Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
