>> A << Slide Ball Bearing Installation

Using special tool, MB990984, install the slide ball bearing in alignment with the control housing end face taking care not to let the bearing protrude to the oil seal installing surface.

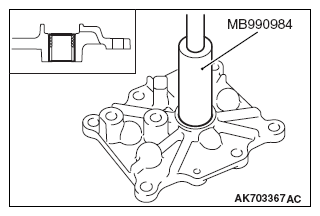

Fig 1: Installing Slide Ball Bearing Using Special Tool MB990984
G09641306Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
