>> D << Stopper Bracket Installation

Tighten the stopper bracket mounting bolts to the specified torque in the illustrated order.

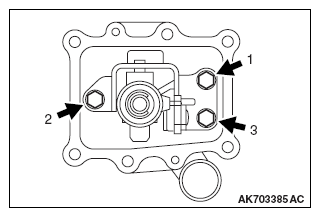

Fig 1: Locating Stopper Bracket Mounting Bolts
G09641309Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
