<< A >> Lock Pin Removal

Drive out the lock pin in the direction shown in the illustration.

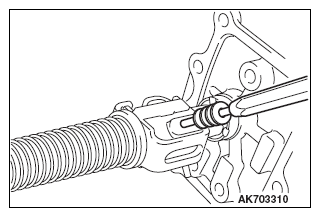

Fig 1: Driving Out Lock Pin
G09641303Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
