>> B << Thrust Bearing Installation

Install the thrust bearings as shown in the illustration.

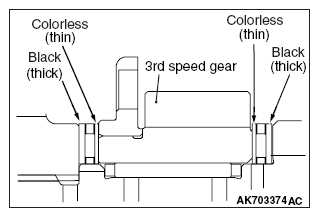

Fig 1: Identifying Thrust Bearings Installation Position
G09641254Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
