>> C << 3RD-4TH Speed Synchronizer Hub/3RD-4TH Speed Synchronizer Sleeve Installation

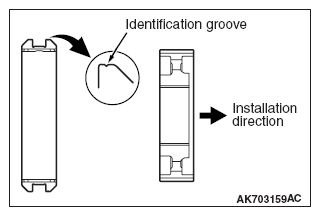

  1. Install the 3rd-4th speed synchronizer hub and synchronizer sleeve in the illustrated direction.
    Fig 1: Identifying 3rd-4th Speed Synchronizer Hub And Synchronizer Sleeve Installation Position
    G09641255Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

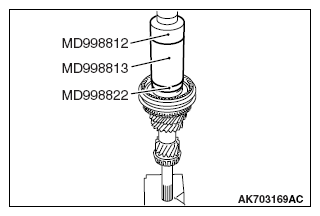

  2. Using the special tools, MD998812, MD998813 and MD998822, indicated below, install the 3rd-4th speed synchronizer sleeve, 3rd-4th speed synchronizer hub, synchronizer outer ring, synchronizer inner ring and synchronizer cone.
  3. After installation, check that the 3rd speed gear rotates smoothly.
    Fig 2: Identifying 3rd-4th Speed Synchronizer Sleeve And 3rd-4th Speed Synchronizer Hub
    G09641256Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
