>> D << 4TH Speed Gear Sleeve Installation

Using the special tools, MD998812, MD998813 and MD998822, indicated below, install the 4th speed gear sleeve.

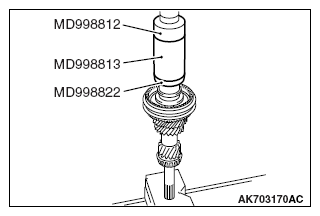

Fig 1: Installing 4th Speed Gear Sleeve Using Special Tools MD998812, MD998813 And MD998822
G09641257Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
