Synchronizer Sleeve And Hub
Combine the synchronizer sleeve and hub, and check that they slide smoothly.
Check that the sleeve is free of damage at its inside spline ends.

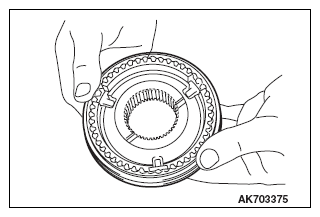

Fig 1: Checking Synchronizer Sleeve And Hub
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
