>> B << Thrust Bearing Installation

Install the thrust bearings as shown in the illustration.

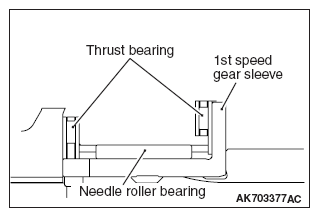

Fig 1: Installing Thrust Bearings
G09641277Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
