>> D << 1ST-2ND Speed Synchronizer Sleeve Installation

  1. Install the 1st-2nd speed synchronizer sleeve in the illustrated direction.
  2. Install the synchronizer outer ring, synchronizer cone and synchronizer inner ring.
  3. After installation, check that the 1st-2nd speed gears rotate smoothly.

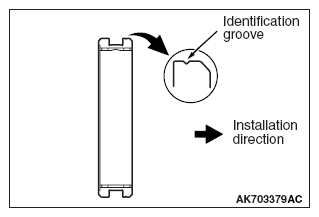

    Fig 1: Installing 1st-2nd Speed Synchronizer Sleeve
    G09641280Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
