>> K << Snap Ring Installation

Select and install appropriate snap ring onto the output shaft so that the clearance of the taper roller bearing meets the standard value.

Standard value: 0.01 - 0.09 mm (0.0004 - 0.0035 inch)

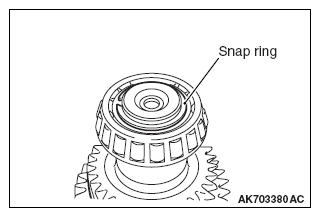

Fig 1: Identifying Snap Ring Onto Output Shaft

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
