>> E << Slide Ball Bearing (For Shift Rail) Installation

CAUTION:

Normally, it is not necessary to disassemble the slide ball bearing. Install it only when the transaxle case is replaced with a new one.
Install the bearing with the stamped mark facing upward.

Using special tool, MB990883, install the slide ball bearing (for shift rail) to the new transaxle case.

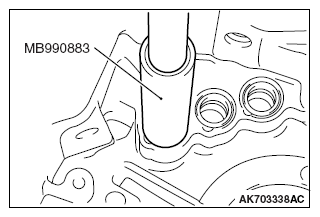

Fig 1: Installing Slide Ball Bearing (For Shift Rail) To Transaxle Case Using Special Tool MB990883

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
