>> C << Reverse Idler Gear Assembly Installation

Install the reverse idler gear assembly so that the notch of the reverse idler gear shaft and 1st-2nd speed synchronizer sleeve meet at the illustrated position.

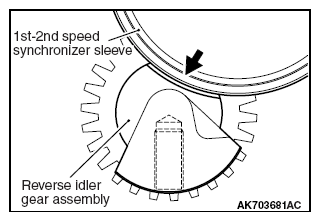

Fig 1: Installing Reverse Idler Gear Assembly
G09641233Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
