>> F << Reverse Shift Lever Installation

Install the reverse shift lever so that its identification mark is located at the illustrated position.

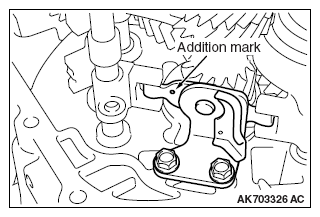

Fig 1: Identifying Reverse Shift Lever With Identification Mark
G09641236Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
