Backup Light Switch

Check for continuity between terminals.

Switch Condition Continuity
Pressed Open
Released Conductive

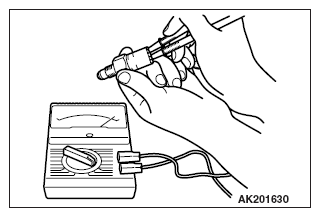

Fig 1: Checking Continuity Between Backup Light Switch Terminals
G09641242Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
