>> A << Cover Installation

  1. Completely degrease the FIPG-applied surface so that water and oil including the old sealant cannot adhere to the surface coated with the sealant.

    Never touch the degreased surface by hand.

  2. Apply a 1.5 mm (0.06 in) diameter bead of sealant as illustrated onto the cover.

    Specified sealant: Mitsubishi Motors Genuine Part No. MD997740 or equivalent

  3. Attach the cover to the transfer and tighten it to the specified torque.

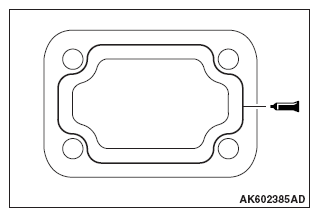

    Fig 1: Identifying Sealant Applying Area On Transfer Cover
    G09641347Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
