>>C<< Spider Assembly/Inboard Joint Case Installation

CAUTION:
  • Special grease is used for the joint. Do not mix the new and previous types of grease or different types of grease.
  • When the spider assembly is cleaned, apply the specified grease carefully more than usual.
  1. Fill the specified grease fully into the clearance between the spider shaft of the spider assembly and the roller.

    Specified grease: Repair kit grease

  2. Install the spider assembly to the shaft of the spline area from the beveling side.

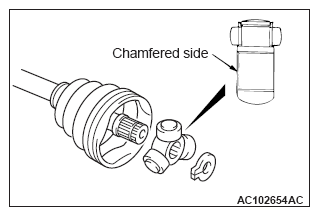

    Fig 1: Installing Spider Assembly To Shaft Of Spline Area From Beveling Side
    G12120189Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

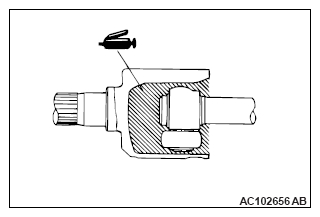

    Fig 2: Filling Inboard Joint Case With Grease
    G12120184Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Insert the driveshaft into the inboard joint case after filling the specified grease to the inboard joint case, and then fill the grease again.

    Specified grease: Repair kit grease

    Application amount: 250 ± 10 g (8.8 ± 0.4 oz) <LH>

    260 ± 10 g (9.2 ± 0.4 oz) <RH>

    NOTE: When using the repair kit grease, fill the half of the grease into the joint and the other half into the boot as a guideline, and consume the grease completely.
