Relay Check: Notes

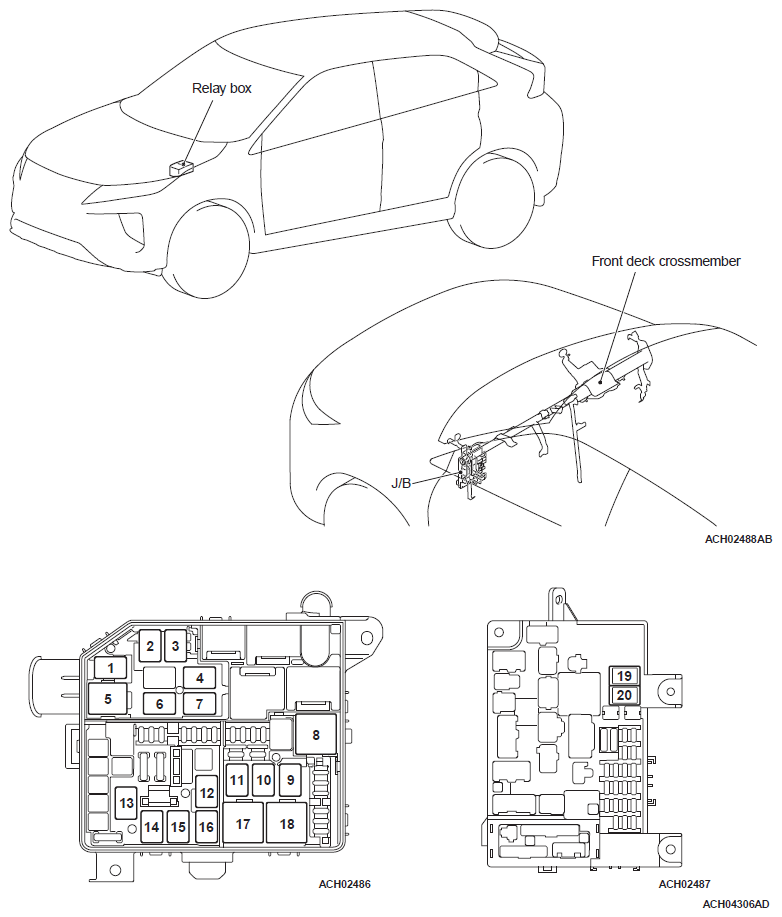

Fig 1: Relay Box, Front Deck Crossmember And J/B

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Part	No.	Part name	Relay type
Relay box	1	Theft - alarm horn relay <Vehicles without theft - alarm sensor>	B
	2	Front fog light relay
	3	Daytime running light relay
	4	Headlight washer relay
	5	Heated windshield relay 2	A
	6	Throttle valve control servo relay	B
	7	Heated seat relay	B
	8	MFI relay	A
	9	Starter relay	B
	10	Steering heater relay	B
	11	Fan control relay	C
	12	Headlight relay (HI)	B
	13	A/C compressor relay
	14	Horn relay
	15	Condenser fan relay
	16	Heated windshield relay 1	A
	17	Radiator fan relay	A
J/B	18	Blower relay	B
