>>B<< Transaxle Control Cable Installation

Move the selector lever to the "N" range.
Move the manual control lever to Neutral position.

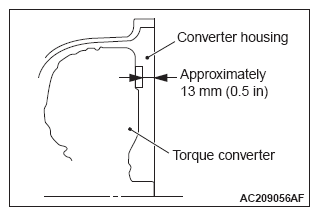

Fig 1: Pushing Torque Converter Into Transaxle Side
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Align the hole at the end of the manual control lever and the hole in the transmission range switch body flange (section A - A).
NOTE: Insert a 5 bar into the aligned holes in the transmission range switch body flange and on the tip of the manual control lever to position the transmission range switch body.

Fig 2: Aligning Hole At End Of Manual Control Lever And Hole In Transmission Range Switch Body Flange (Section A - A)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Attach the transaxle control cable to the manual control lever.
Make sure that the transaxle side ranges that are corresponding to the selector lever position operate and function without fail.

Fig 3: Attaching Transaxle Control Cable To Manual Control Lever
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
