DTC P0776: Abnormality In Secondary Pressure Solenoid Valve Function
>>
Logic Flow Charts (Monitor Sequence-Output Functional Low)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

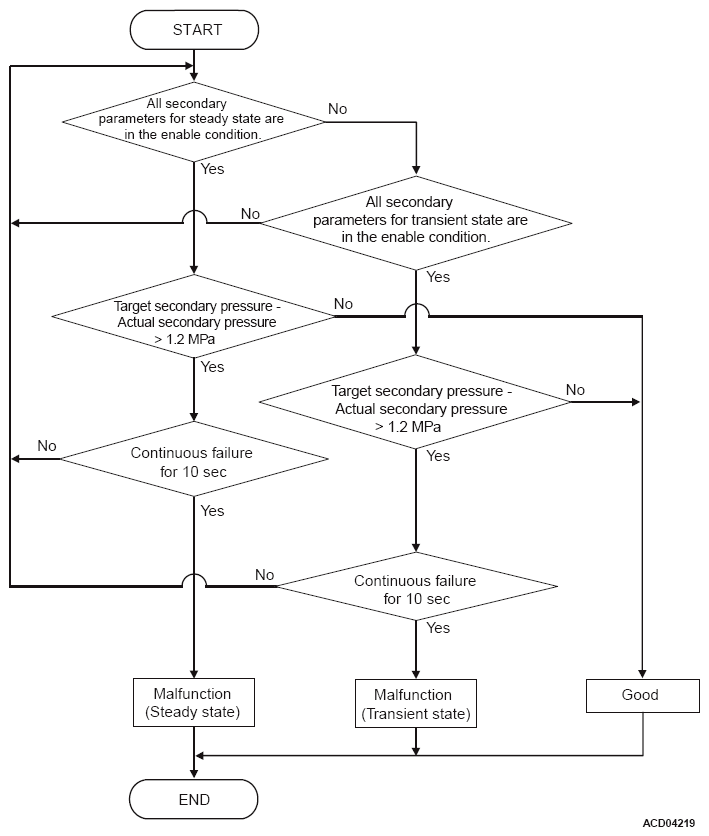

Logic Flow Charts (Monitor Sequence-Output Functional Low)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
