LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Mitsubishi
>>
2019
>>
Eclipse Cross ES, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Continuously Variable Transaxle (CVT) (With Diagnostics)
>>
Diagnosis <CVT>
>>
Diagnostic Troubleshooting Flow
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

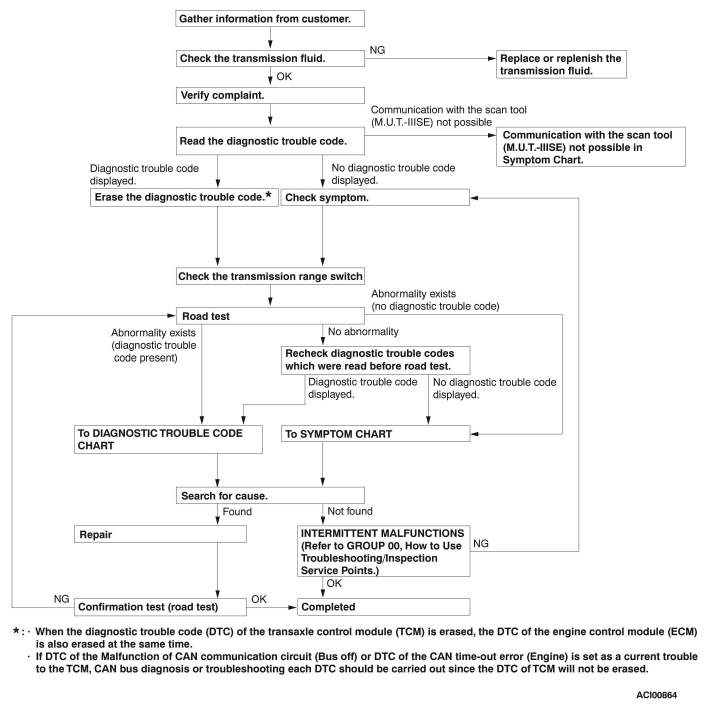

Diagnostic Troubleshooting Flow
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
