Removal And Installation: Notes

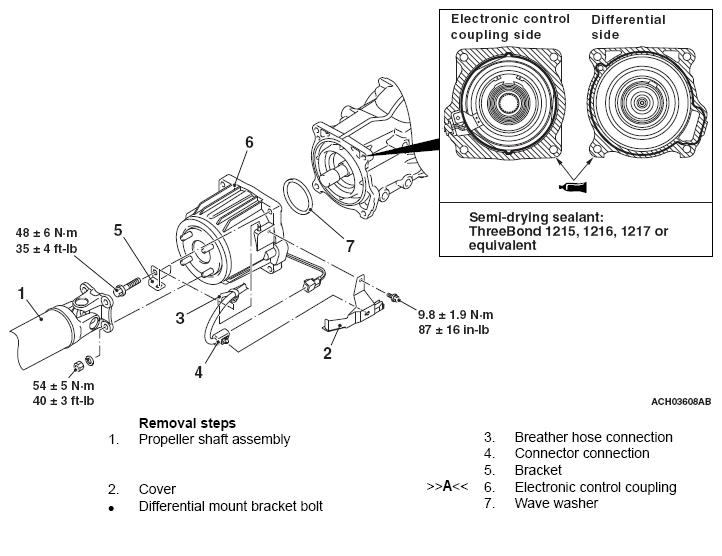

Fig 1: Removing/Installing Electronic Control Coupling Components With Torque Specification (AWD)
G12648725Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
