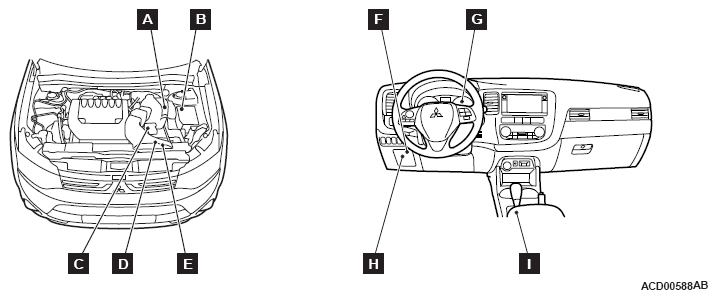

A/T Control Component Layout

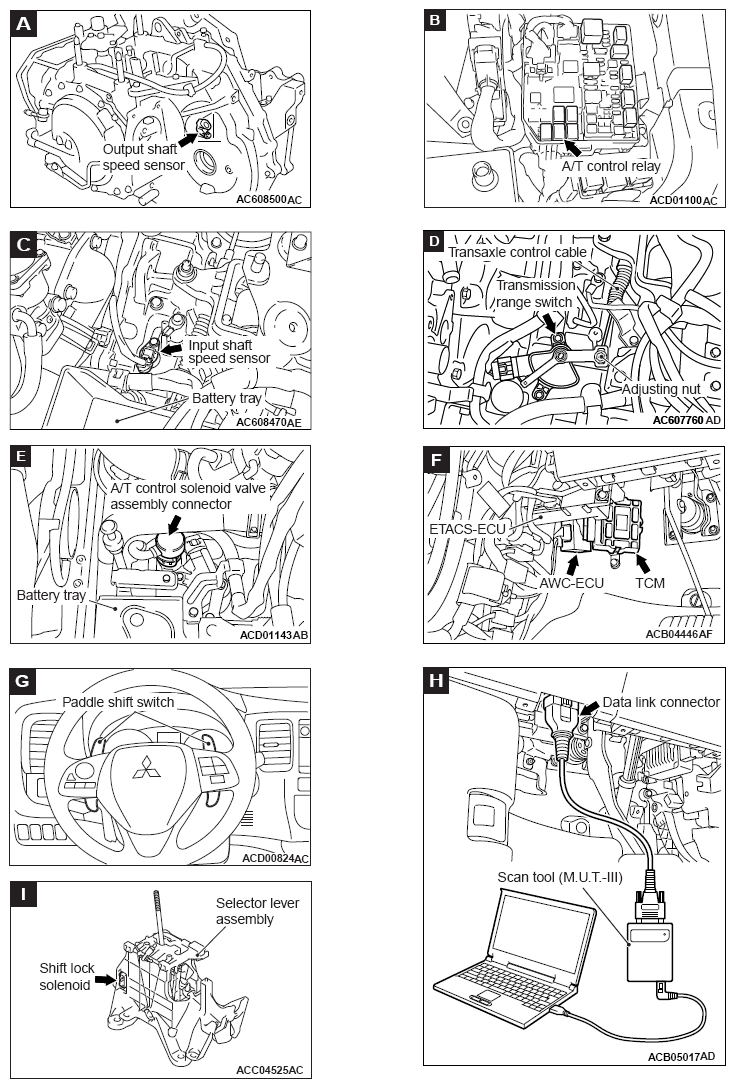

| Name | Symbol | Name | Symbol |
|---|---|---|---|
| A/T control relay | B | Output shaft speed sensor | A |
| A/T control solenoid valve assembly connector | E | Paddle shift switch | G |
| AWC-ECU <Vehicles with S-AWC> | F | Selector lever assembly (incorporating shift lock solenoid) | I |
| Data link connector | H | Transaxle control module (TCM) | F |
| Input shaft speed sensor | C | Transmission range switch | D |
| Name | Symbol |
|---|---|

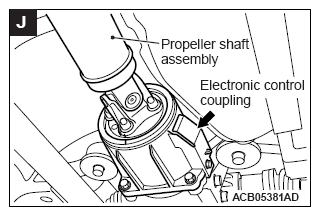

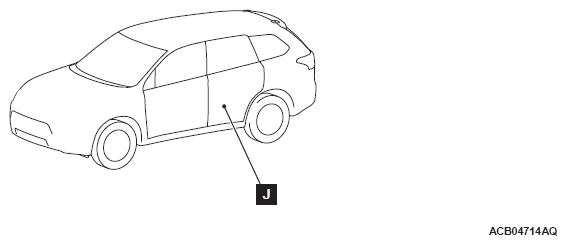

| Electronic control coupling <Vehicles with S-AWC> | J |
