Transmission Fluid Temperature Sensor Check

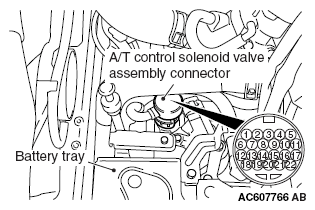

- Disconnect the A/T control solenoid valve assembly connector.
- Measure the resistance between the sensor-side connector terminal No. 2 and 3 of the A/T control solenoid valve assembly connector.
Standard value:
Fluid temperature °C (°F) Resistance kΩ 10 (50) Approx. 6.62 Fluid temperature °C (°F) Resistance kΩ 25 (77) Approx. 3.51 80 (176) Approx. 0.55 110 (230) Approx. 0.25 CAUTION: The transmission fluid temperature sensor cannot be removed or replaced as a single unit. When the transmission fluid temperature sensor needs to be replaced, replace the valve body assembly. - When the resistance of the transmission fluid temperature sensor is outside the standard value, replace the valve body assembly and the harness.
