>>B>> Transaxle Control Cable (Transaxle Side) Installation

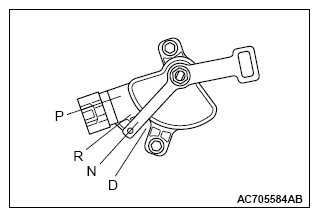

  1. Move the selector lever and manual control lever to the "N" position.
  2. Use the adjusting nut to tighten the transaxle control cable to the specified torque.

    Tightening torque: 9.5 ± 3.5 N.m (84 ± 30 in-lb)

G10223401Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
G05431697Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
