Removal And Installation: Notes


Pre-removal and post-installation operation Engine Room Under Cover Removal and Installation. Transmission Fluid Draining and Refilling (Refer to TRANSMISSION FLUID CHANGE .) Transfer Oil Draining and Refilling. Front Exhaust Pipe Removal and Installation (Refer to REMOVAL AND INSTALLATION <3.0L ENGINE> .) Propeller Shaft Removal and Installation. Engine Roll Stopper Rod Assembly Removal and Installation. (Refer to INSTALLATION SERVICE POINT Drive shaft <RH> removal and installation (Refer to DRIVESHAFT ASSEMBLY .)

Pre-removal and post-installation operation

Engine Room Under Cover Removal and Installation.
Transmission Fluid Draining and Refilling (Refer to TRANSMISSION FLUID CHANGE .)
Transfer Oil Draining and Refilling.
Front Exhaust Pipe Removal and Installation (Refer to REMOVAL AND INSTALLATION <3.0L ENGINE> .)
Propeller Shaft Removal and Installation.
Engine Roll Stopper Rod Assembly Removal and Installation. (Refer to INSTALLATION SERVICE POINT
Drive shaft <RH> removal and installation (Refer to DRIVESHAFT ASSEMBLY .)

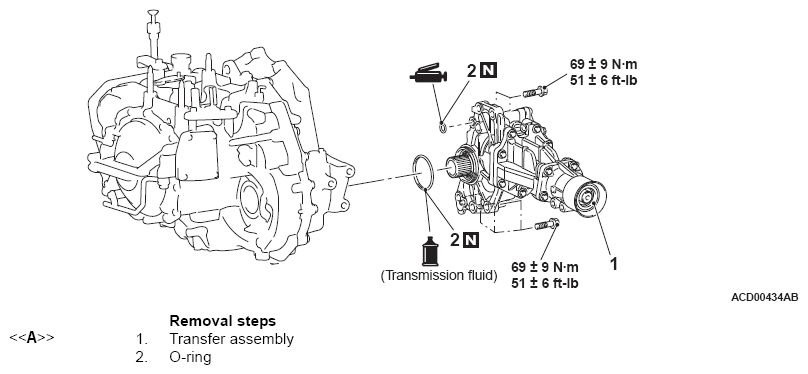

Fig 1: Removing/Installing Transfer Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
