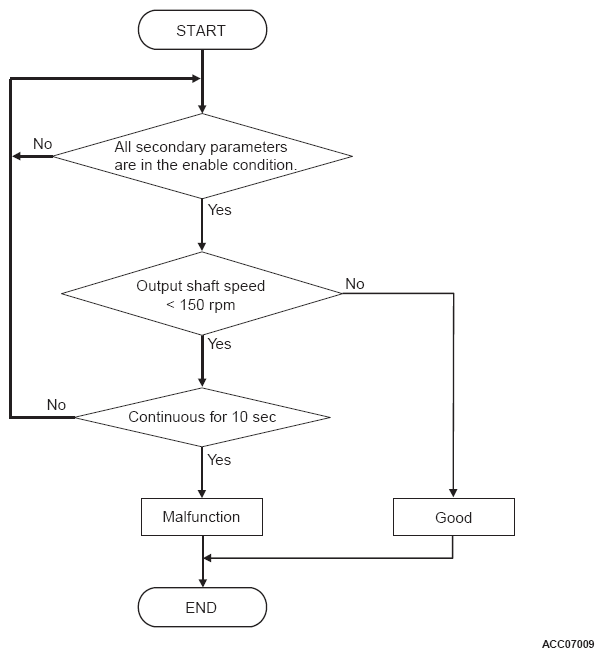

LOGIC FLOW CHARTS [Monitor Sequence-Input Rationality Low (Open/Low revolution)]

WARNING: This page is about a different variant/trim than selected.
G11278232Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
