Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

When removing and installing the transaxle assembly, be careful not to drop the torque converter. In addition, do not remove the torque converter.
When the transaxle assembly is replaced, initialize the CVT learned value (Refer to INITIALIZATION PROCEDURE FOR CVT LEARNED VALUE ).

Pre-removal operation

Under Cover Front Removal (Refer to REMOVAL AND INSTALLATION ).
Transmission Fluid Draining (Refer to TRANSMISSION FLUID REPLACEMENT ).
Engine Coolant Draining (Refer to ENGINE COOLANT REPLACEMENT ).
Starter Motor Assembly Removal (Refer to REMOVAL AND INSTALLATION ).
Exhaust Manifold Removal (Refer to REMOVAL AND INSTALLATION ).
Drive Shaft Removal (Refer to REMOVAL AND INSTALLATION ).
Air Cleaner Assembly Removal (Refer to REMOVAL AND INSTALLATION ).
Battery and Battery Tray Removal (Refer to REMOVAL AND INSTALLATION ).

Post-installation operation

Battery and Battery Tray Installation (Refer to REMOVAL AND INSTALLATION ).
Air Cleaner Assembly Installation (Refer to REMOVAL AND INSTALLATION ).
Drive Shaft Installation (Refer to REMOVAL AND INSTALLATION ).
Exhaust Manifold Installation (Refer to , REMOVAL AND INSTALLATION ).
Starter Motor Assembly Installation (Refer to REMOVAL AND INSTALLATION ).
Engine Coolant Refilling (Refer to ENGINE COOLANT REPLACEMENT ).
Transmission Fluid Refilling (Refer to TRANSMISSION FLUID REPLACEMENT ).
Under Cover Front Installation (Refer to REMOVAL AND INSTALLATION ).

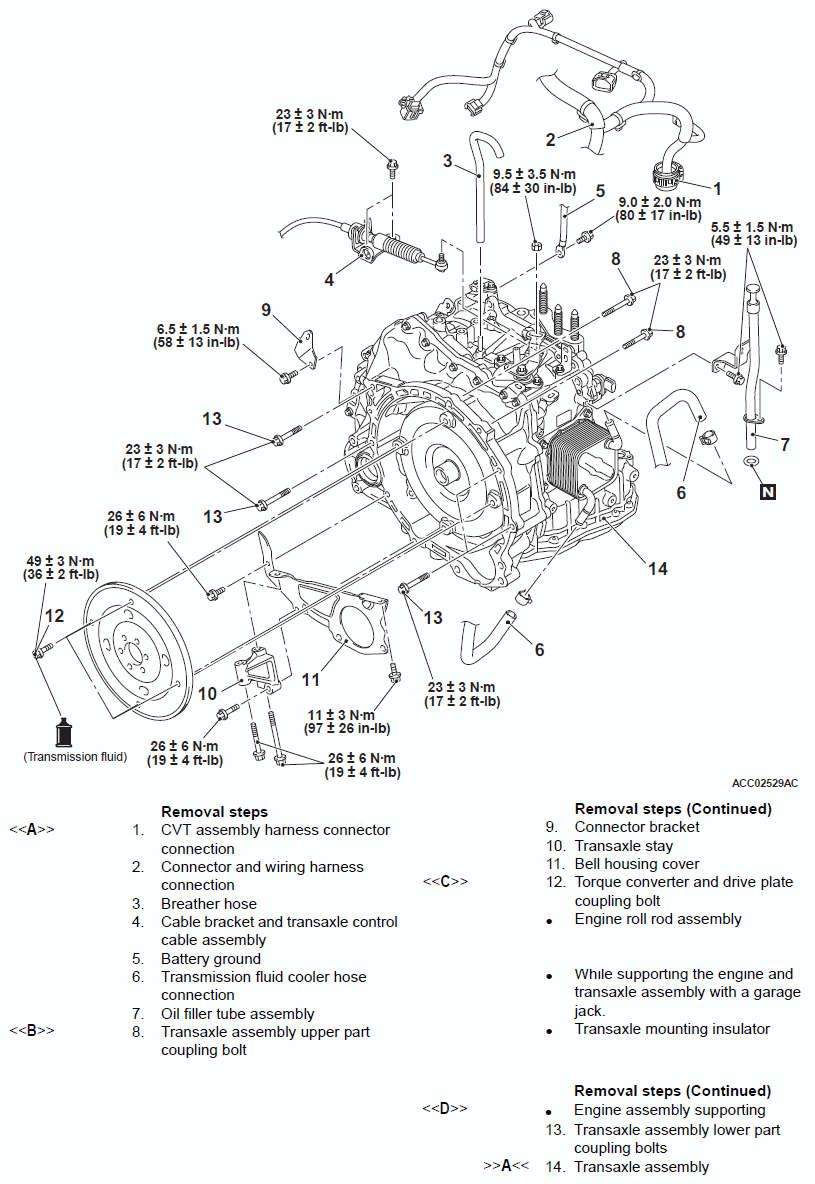

Fig 1: Removing/Installing Transaxle Assembly Components With Torque Specifications

G11480320

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991895: Engine Hanger
MB991928: Engine Hanger
Joint x 2 (50) (MB991929)
Foot x 4 (standard) (MB991932)
MB992906: Engine hanger attachment
