Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Pre-removal and post-installation operation

Instrument Panel Cover Lower Removal and Installation

(Refer to REMOVAL AND INSTALLATION ).

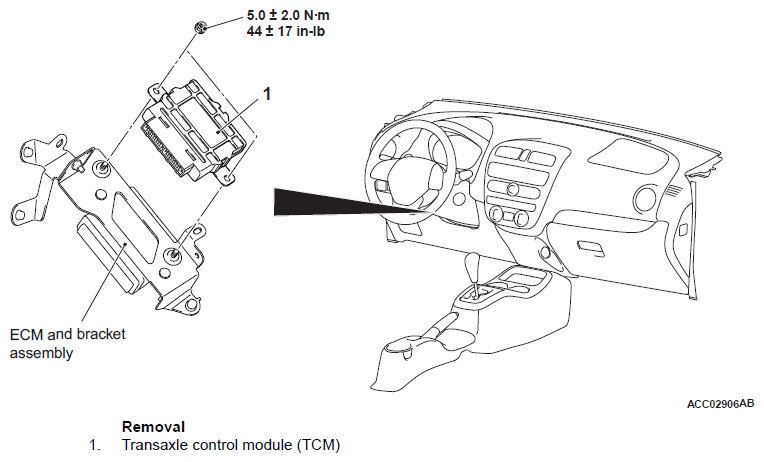

Fig 1: Removing/Installing Transaxle Control Module Components With Torque Specifications
G11480327Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
