Check At The Engine Control Module (ECM) Terminal

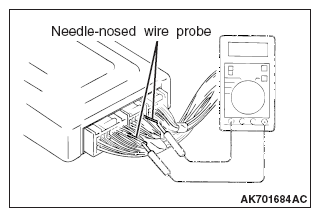

1. Connect a needle-nosed wire probe to a voltmeter probe.

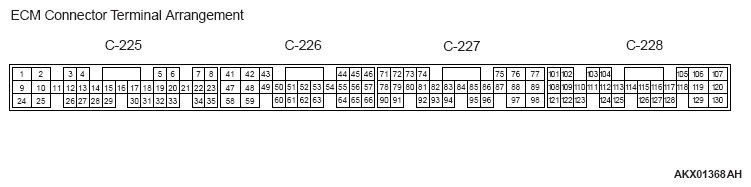

2. Insert the needle-nosed wire probe into each of the ECM connector terminals from the wire side, and measure the voltage while referring to the check chart.
   NOTE:

   • Make the voltage measurement with the ECM connector connected.
   • You may find it convenient to pull out the ECM to make it easier to reach the connector terminals.
   • The checks can be carried out off the order given in the chart.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   CAUTION: Short-circuiting the positive (+) probe between a connector terminal and ground could damage the vehicle wiring, the sensor, ECM or all of them. Be careful to prevent this!
3. If voltmeter shows any division from standard value, check the corresponding sensor, actuator and related electrical wiring, then repair or replace.
4. After repair or replacement, recheck with the voltmeter to confirm that the repair has corrected the problem.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

TERMINAL NUMBER	TERMINAL CODE	CHECK ITEM	CHECK CONDITION		NORMAL CONDITION
94	CNTS	Cruise control switches power supply	Ignition switch: "ON" position	All switches: Released.	4.7 to 5.0 V
				Cruise control ON/OFF switch: Pressed.	0.9 to 1.7 V
				"CANCEL" switch: Pressed.	1.9 to 2.7 V
				"SET-" switch: Pressed.	2.9 to 3.6 V
				"RES+" switch: Pressed.	3.8 to 4.5 V
121	BRK	Stoplight switch (brake switch)	Ignition switch: "ON" position	Depress the brake pedal.	Battery positive voltage
				Release the brake pedal.	1 V or less
128	CLT1	Clutch interlock switch (for cruise control system) <M/T>	Ignition switch: "ON" position	Release the clutch pedal.	10 V or more
				Depress the clutch pedal.	1 V or less
