>>A<< Driveshaft And Hub Knuckle Assembly Connection

CAUTION:

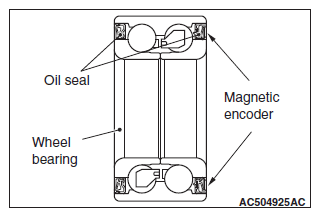

The magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it.
When installing the driveshaft, make sure that it does not contact with the magnetic encoder (integrated with the inner oil seal) to avoid damage.
Insert the driveshaft so that no hub bolt is vertically above the groove of the driveshaft assembly.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Apply the grease as shown in the illustration and then insert the driveshaft assembly into the front hub.

Specified grease:

Shell Gadus S2 V220AD 2, Shell Alvania Grease HDX or Dowcorning/Molykote BR2 Plus

Amount to use: As required [1.0 - 1.5 g (0.04 - 0.05 oz) ]

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
