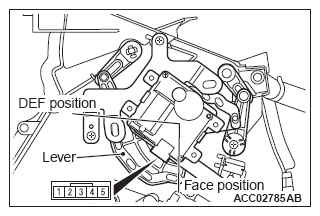

Check The Mode Selection Damper Control Motor And Potentiometer

CAUTION: Stop energizing when the lever is set to the operation stopping position.

MOTOR CONNECTION INSPECTION

Positive battery terminal connection	Negative battery terminal connection	Lever operation
1	2	Rotate to the FACE side
2	1	Rotate to the DEF side

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Potentiometer check

When the resistance value between connector terminals 3 and 4 is measured while checking the motor, check that the resistance value changes gradually within the standard value.

Standard value: 1.20 (FACE) - 4.80 (DEF) kΩ
