Check The Outside/Inside Air Selection Damper Control Motor
CAUTION:
Stop energizing when the lever is set to the operation stopping position.

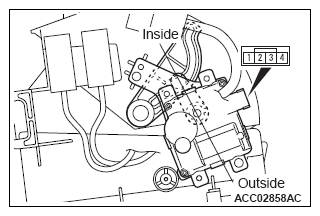

MOTOR CONNECTION INSPECTION
| Positive battery terminal connection |
Negative battery terminal connection |
Lever operation |
| 1 |
3 |
Rotate to the inside. |
| 1 |
4 |
Rotate to the outside. |
