<<A>> Engine Starting Switch Assembly Removal

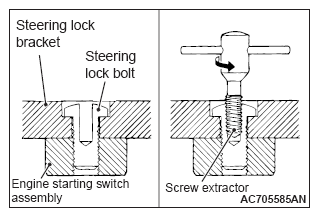

  1. Use a drill to make a hole just deeply enough for the tap to stand on the steering lock bolt.
  2. Remove the steering lock bolt using a screw extractor or equivalent.
G13240268Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
