Cruise Control Switch Check
- Remove the cruise control switch (Refer to REMOVAL AND INSTALLATION ).

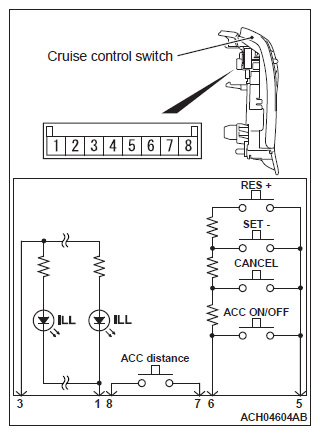

- Measure the resistance between terminal No. 8 and terminal No. 7 when each of the ACC distance switches is pressed. Measure the resistance between terminal No. 6 and terminal No. 5 when each of the ACC ON/OFF, CANCEL, SET - and RES + switches is pressed. If the values measured at the time each switch is pressed correspond to those in the table below, the resistance values are correct.
Terminal connector of tester Switch position Specified condition 7 - 8 ACC distance switch is pressed Continuity (less than 2Ω) 5 - 6 All switches are released. Open circuit ACC ON/OFF switch is pressed 176 - 180Ω CANCEL switch is pressed 460 - 470 Ω SET - switch is pressed 1, 030 - 1, 051 Ω RES + switch is pressed 2, 725 - 2, 837 Ω - Check that illumination of the cruise control switch turns on when the 12V starter battery positive terminal is connected to cruise control switch connector terminal No. 3, and the auxiliary battery negative terminal is connected to cruise control switch connector terminal No. 1.
