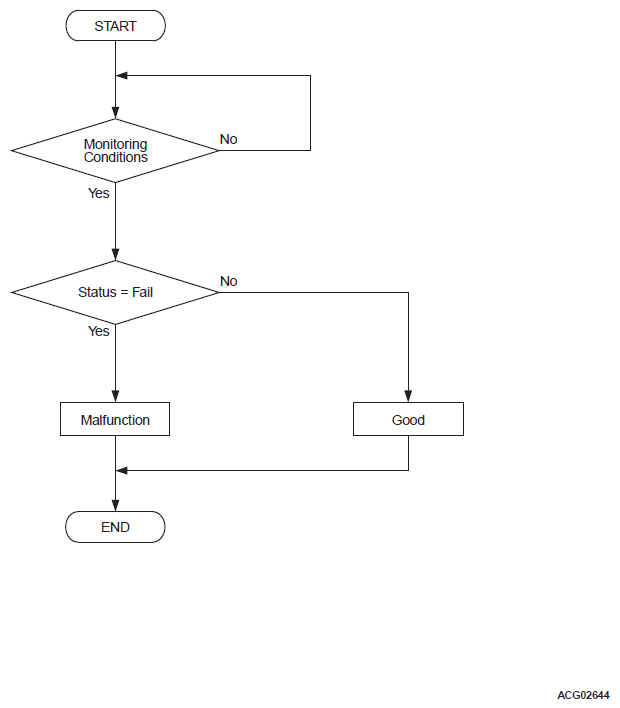

Logic Flow Chart

G12377594Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check Conditions

OBC power supply voltage is 10 volts to 16 volts.

Judgment Criterion

Status fail.
