>>C<< Inlet Cap Spring/Inlet Cap Lock Spring Installation

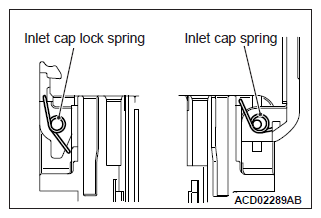

Observe the correct spring orientation.

G12377623Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
