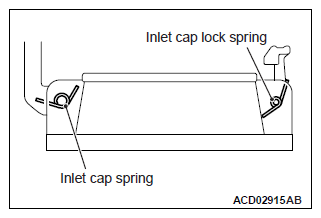

>>C<< Inlet Cap Spring/Inlet Cap Lock Spring Installation

Observe the correct spring orientation.

G12377168Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
