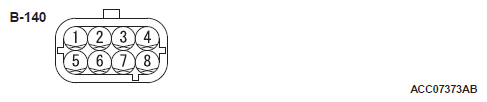

Check at generator terminal
| Terminal No. | Terminal code | Check item | Checking requirements | Normal condition |
|---|---|---|---|---|
| 11 | GTH1 | Temperature in the U-phase coil wire | Disconnect the connector, and measure the resistance between terminal Nos. 11 and 15. | Approx. 400kΩ - 600kΩ: -20°C (-4°F) Approx. 140kΩ - 200kΩ: 0°C (32°F) Approx. 55kΩ - 70kΩ: 20°C (68°F) Approx. 23kΩ - 30kΩ: 40°C (104°F) |
| 14 | GTG1 | Temperature in the U-phase coil wire (-) | ||
| 12 | GTH2 | Temperature in the W-phase coil wire | Disconnect the connector, and measure the resistance between terminal Nos. 12 and 15. | |
| 15 | GTG2 | Temperature in the W-phase coil wire (-) | ||
| 13 | TH0 | Temperature in oil temperature thermistor | Disconnect the connector, and measure the resistance between terminal Nos. 12 and 15. | |
| 16 | TG0 | Temperature in oil temperature thermistor |
| Terminal No. | Terminal code | Check item | Checking requirements | Normal condition |
|---|---|---|---|---|
| 1 | R1 | GR1 | Disconnect the connector, and measure the resistance between terminal Nos. 1 and 4. | 29Ω - 38Ω |
| 4 | R2 | GR2 | ||
| 2 | S1 | GS1 | Disconnect the connector, and measure the resistance between terminal Nos. 2 and 5. | 70Ω - 92Ω |
| 5 | S3 | GS3 | ||
| 3 | S2 | GS2 | Disconnect the connector, and measure the resistance between terminal Nos. 3 and 6. | 60Ω - 83Ω |
| 6 | S4 | GS4 | ||
| 7 | GGND | ECU power supply ground | Always | 1 V or less |
