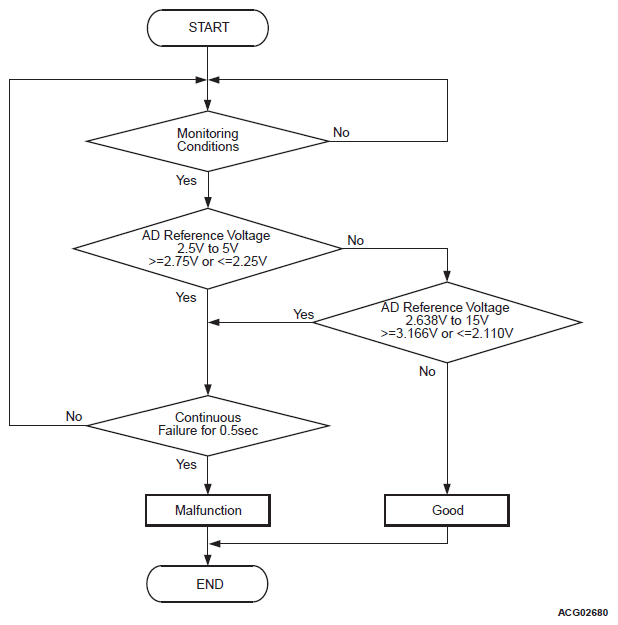

Logic Flow Chart

Sensor (The sensor below is determined to be normal)

Not applicable

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check Conditions

Power drive unit (FEMCU) power supply voltage is 8 volts to 16 volts.

Judgment Criterion

• AD reference voltage 2.5V to 5V is no more than 2.25 volt or not less than 2.75 volt
• AD reference voltage 2.638V to 15V is no more than 2.11 volt or not less than 3.166 volt
