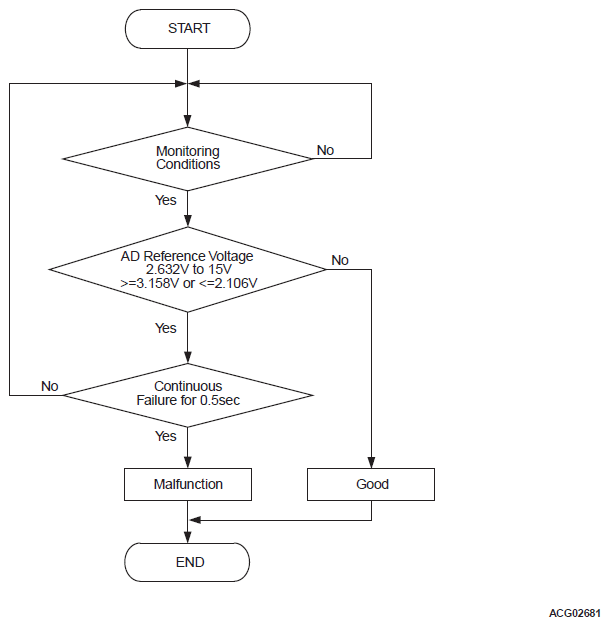

Logic Flow Chart

Sensor (The sensor below is determined to be normal)

Not applicable

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check Conditions

REMCU power supply voltage is 8 volts to 16 volts.

Judgment Criterion

AD reference voltage 2.632V to 15V is no more than 2.106 volt or not less than 3.158 volt
