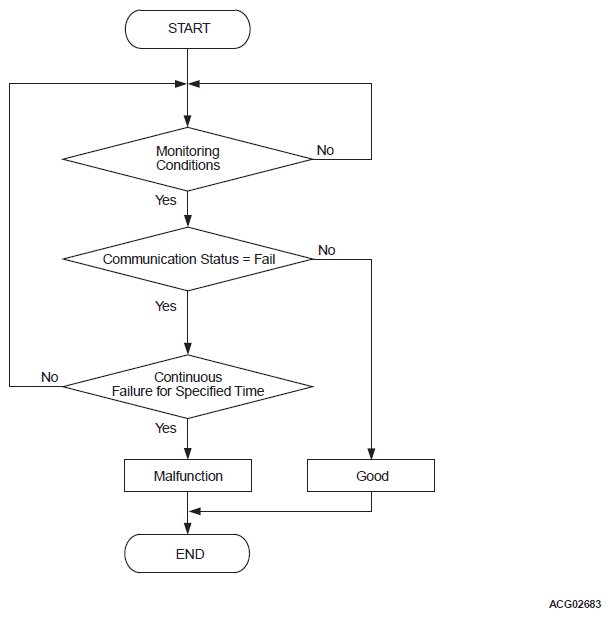

Logic Flow Chart

Sensor (The sensor below is determined to be normal)

Not applicable

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check Conditions

• The vehicle is in the high voltage start mode
• The vehicle status is propulsion system active.
• When the vehicle is in the charging mode or is being charged

Judgment Criterion

• Unable to receive PHEV-ECU signals through the CAN bus line for 0.3 second.
