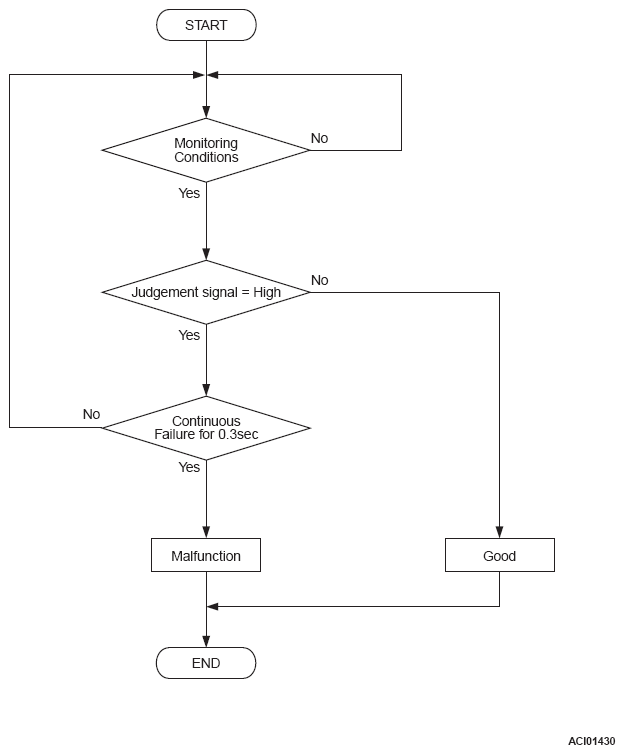

Logic Flow Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check Conditions

• The PHEV-ECU power supply voltage is more than 9.0 volts.
• The main contactor (P) activation command off.

Judgment Criterion

Judgment signal from intelligent power device (IPD) for main contactor (P) is high for immediately.
