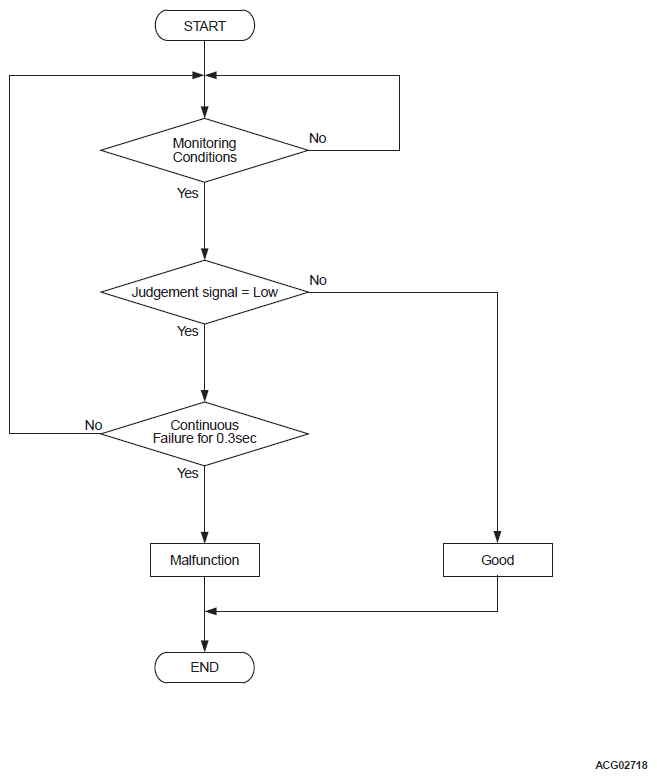

Logic Flow Chart <DTC P0ADF>

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check Conditions <DTC P0ADF>

• The PHEV-ECU power supply voltage is more than 9.0 volts.
• The main contactor (N) contactor activation command on.

Judgment Criterion <DTC P0ADF>

Judgment signal from intelligent power device (IPD) for main contactor (N) is low for 0.3 seconds.
