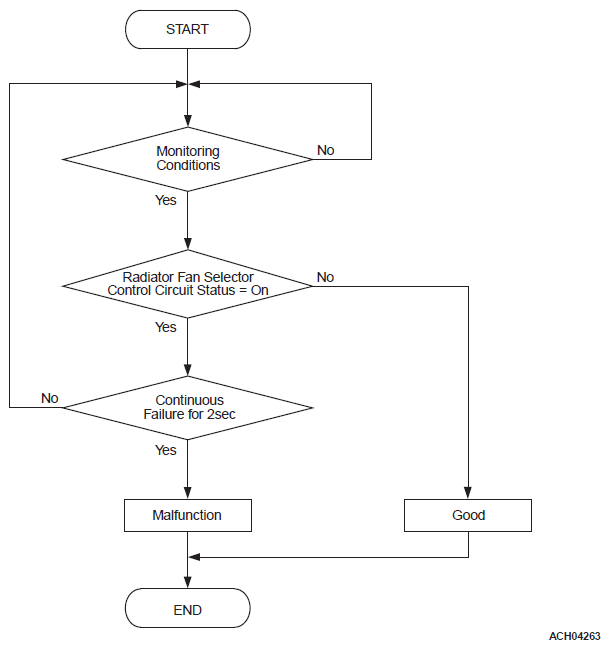

Logic Flow Chart <DTC P10DE>

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check Conditions <DTC P10DE>

• The PHEV-ECU power supply voltage is more than 9.0 volts.
• The fan control relay activation command off.

Judgment Criterion <DTC P10DE>

The radiator fan relay is on for 2 seconds.
