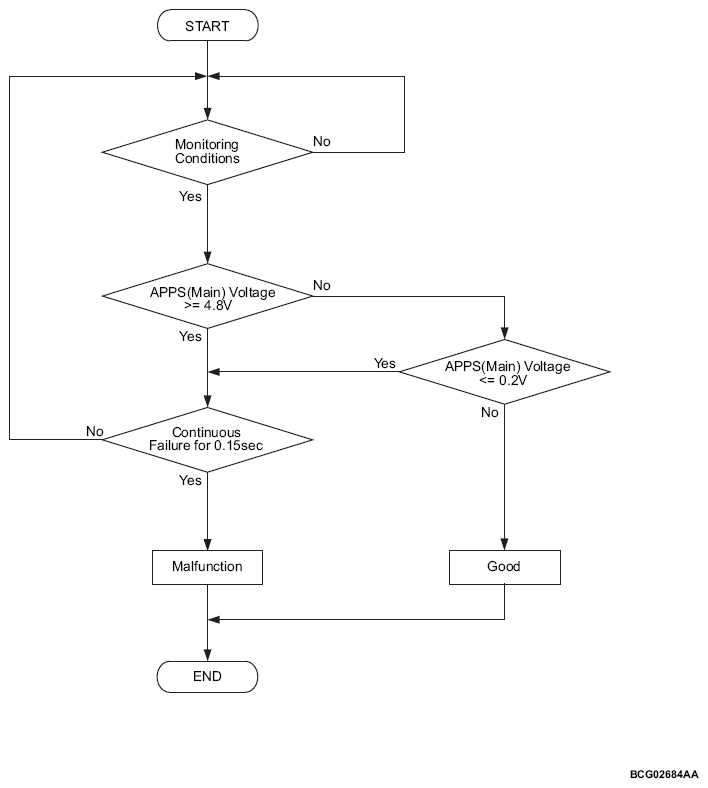

Logic Flow Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check Conditions

• The PHEV-ECU power supply voltage is more than 9.0 volts.
• The power supply mode of electric motor switch is ON.

Judgment Criterion <DTC P2122>

The accelerator pedal position sensor (main) output voltage is less than 0.2 volt for 0.3 second.

Judgment Criterion <DTC P2123>

The accelerator pedal position sensor (main) output voltage is more than 4.8 volts for 0.3 second.
