>>B<< TPMS Transmitter Installation
CAUTION:

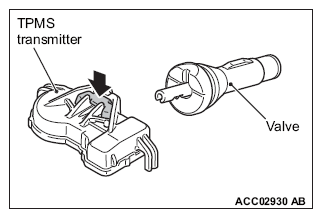

Do not attempt to install the TPMS transmitter without depressing the portion indicated by the arrow.
- Install the TPMS transmitter into the valve while depressing the portion indicated by the arrow.CAUTION: Make sure that the TPMS transmitter and the valve are installed securely.
- Pull the TPMS transmitter from the valve by hand to make sure it is secure.
NOTE:
If the TPMS transmitter is disconnected from the valve, the tab securing the TPMS transmitter to the valve may be broken.
