DTC B2101: IG SW start POS.circuit low; DTC B2102: IG SW start POS.circuit high: Notes

CAUTION:
  • If DTC B2101 or B2102 is set, be sure to diagnose the CAN bus line.
  • Before replacing the ECU, ensure that the communication circuit is normal.

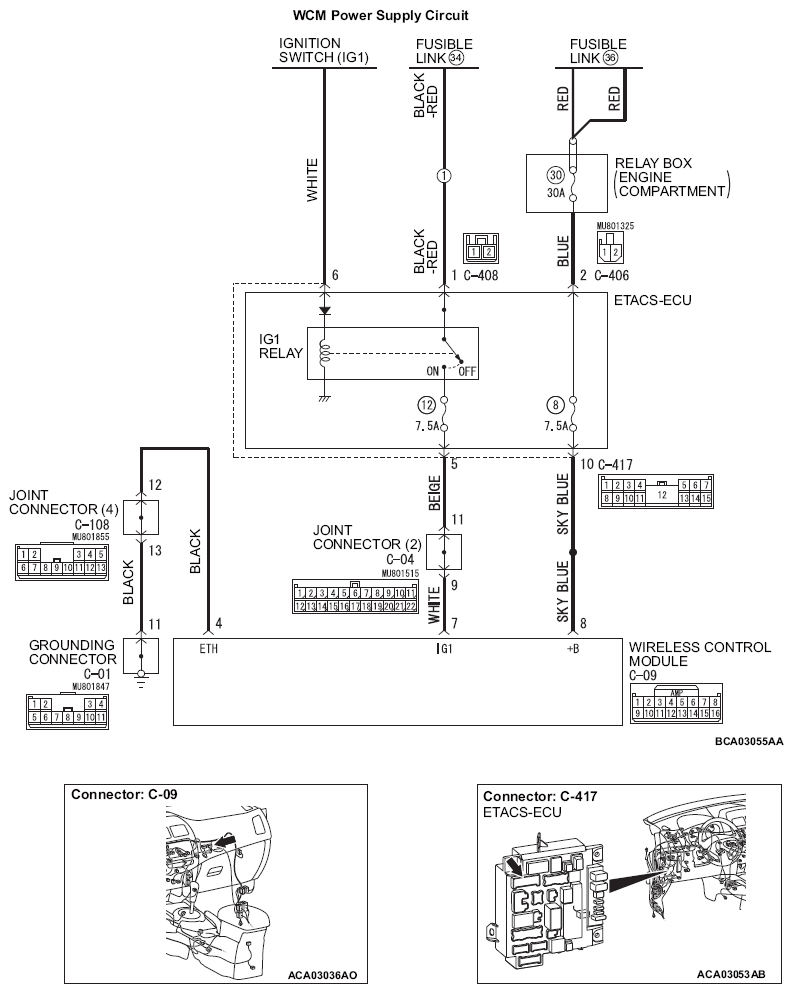

G14214084Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
