<<B>> TPMS Transmitter Removal

CAUTION: Be careful not to damage the TPMS transmitter.

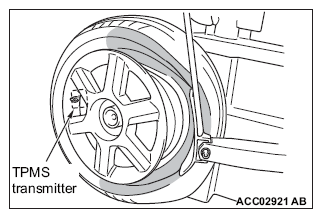

  1. Fix the tire on a tire changing machine. Then apply a bead breaking shoe to the shown range to disengage the tire bead from the wheel rim.
    NOTE: For the opposite side, repeat the same procedure.
    G14214115Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

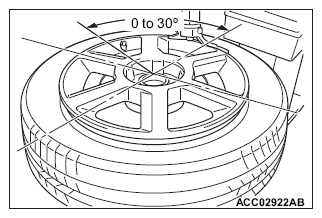

  2. Fix the tire on a tire changing machine so that the TPMS transmitter is positioned as shown.
    G14214116Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Do not allow any impact or shock to the TPMS transmitter with a tire lever or tire bead.
  3. Use a tire lever to disengage the upper bead.

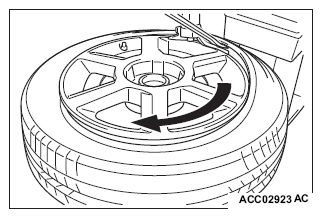

  4. Rotate the tire in the direction of arrow to disengage the tire bead from the wheel.
    G14214117Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

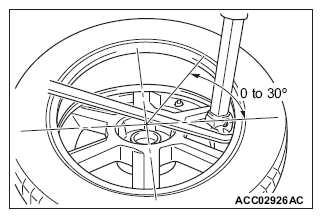

  5. Fix the tire on a tire changing machine so that the TPMS transmitter is positioned as shown.
    G14214118Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Do not allow any impact or shock to the TPMS transmitter with a tire lever or tire bead.

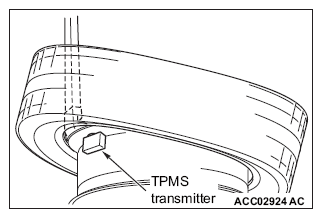

  6. Use a tire lever to disengage the lower bead.
    G14214119Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

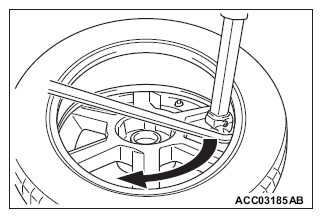

  7. Rotate the tire in the direction of arrow to disengage the tire bead from the wheel.
G14214120Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
