»B« Inboard Joint Boot Band (Small)/Inboard Joint Boot Band (Large) Installation

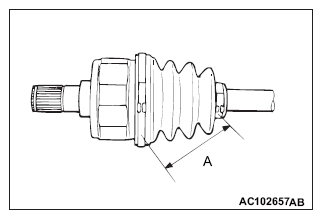

Adjust the distance (A shown in the illustration) between the boot bands to the standard value to adjust the air volume inside the inboard joint boot to the specified value, then be sure to tighten the inboard joint boot band (large) and inboard joint boot band (small).
Standard value (A):
85 ± 3 mm (3.35 ± 0.12 inches)
